AAT-Texas Red-streptavidin conjugate
Upgrade:?iFluor™ 594-streptavidin conjugate
See also:?Bioconjugation,?Biotin and Streptavidin,?Flow Cytometry Reagents
Molecular weight
52000
|
Correction Factor (260?nm)
0.23
|
Correction Factor (280?nm)
0.36
|
Correction Factor (565?nm)
0.4472
|
Extinction coefficient (cm?-1?M?-1)
1160001
|
Excitation (nm)
586
|
Emission (nm)
603
|
Quantum yield
0.931,?0.352
|
Streptavidin conjugates are widely used together with a conjugate of biotin for specific detection of a variety of proteins, protein motifs, nucleic acids and other molecules since streptavidin has a very high binding affinity for biotin. This Texas Red-streptavidin conjugate comprises streptavidin (as the biotin-binding protein) with Texas Red covalently attached (as the fluorescent label). Our Texas Red-streptavidin conjugate was prepared using AAT Bioquest’s proprietary labeling technology. It demonstrated much brighter signal compared to the similar Texas Red-streptavidin conjugates from other commercial sources, thus can significantly increase assay sensitivities. It is commonly used as a second step reagent for indirect immunofluorescent staining, when used in conjunction with biotinylated primary antibodies. It is a valuable tool for biotin-streptavidin-based biological assays and tests using flow cytometry with a Texas Red filter set. A variety of the complementary biotinylated reagents are available from numerous commercial vendors.
Calculators
Common stock solution preparation
Table 1.?Volume of?Water?needed to reconstitute specific mass of?Texas Red?-streptavidin conjugate?to given concentration. Note that volume is?only?for preparing stock solution. Refer to sample experimental protocol for appropriate experimental/physiological buffers.
0.1 mg | 0.5 mg | 1 mg | 5 mg | 10 mg | |
1 mM | 1.923 μL | 9.615 μL | 19.231 μL | 96.154 μL | 192.308 μL |
5 mM | 384.615 nL | 1.923 μL | 3.846 μL | 19.231 μL | 38.462 μL |
10 mM | 192.308 nL | 961.538 nL | 1.923 μL | 9.615 μL | 19.231 μL |
Molarity calculator
Enter any two values (mass, volume, concentration) to calculate the third.
鏈霉親和素綴合物與生物素綴合物一起廣泛用于特異性檢測各種蛋白質、蛋白質基序、核酸和其他分子,因為鏈霉親和素對生物素具有非常高的結合親和力。該德克薩斯紅-鏈霉抗生物素偶聯物包含鏈霉抗生物素(作為生物素結合蛋白)與德克薩斯紅共價連接(作為熒光標記)。我們的 Texas Red-streptavidin 偶聯物是使用 AAT Bioquest 的專有標記技術制備的。與來自其他商業來源的類似德州紅-鏈霉親和素偶聯物相比,它顯示出更亮的信號,因此可以顯著提高檢測靈敏度。當與生物素化一抗結合使用時,它通常用作間接免疫熒光染色的第二步試劑。它是使用流式細胞儀和 Texas Red 過濾器組進行基于生物素-鏈霉親和素的生物測定和測試的寶貴工具。多種互補的生物素化試劑可從眾多商業供應商處獲得。
普通儲備溶液制備
表 1.將特定質量的Texas Red?-鏈霉親和素偶聯物重新配制到給定濃度所需的水體積。請注意,體積僅用于制備儲備溶液。有關適當?shù)膶嶒?生理緩沖液,請參閱示例實驗協議。
0.1毫克 | 0.5毫克 | 1毫克 | 5毫克 | 10毫克 | |
1毫米 | 1.923 μL | 9.615 μL | 19.231 μL | 96.154 μL | 192.308 μL |
5毫米 | 384.615 毫升 | 1.923 μL | 3.846 μL | 19.231 μL | 38.462 μL |
10毫米 | 192.308 毫升 | 961.538 毫升 | 1.923 μL | 9.615 μL | 19.231 μL |
摩爾濃度計算器
輸入任意兩個值(質量、體積、濃度)來計算第三個。

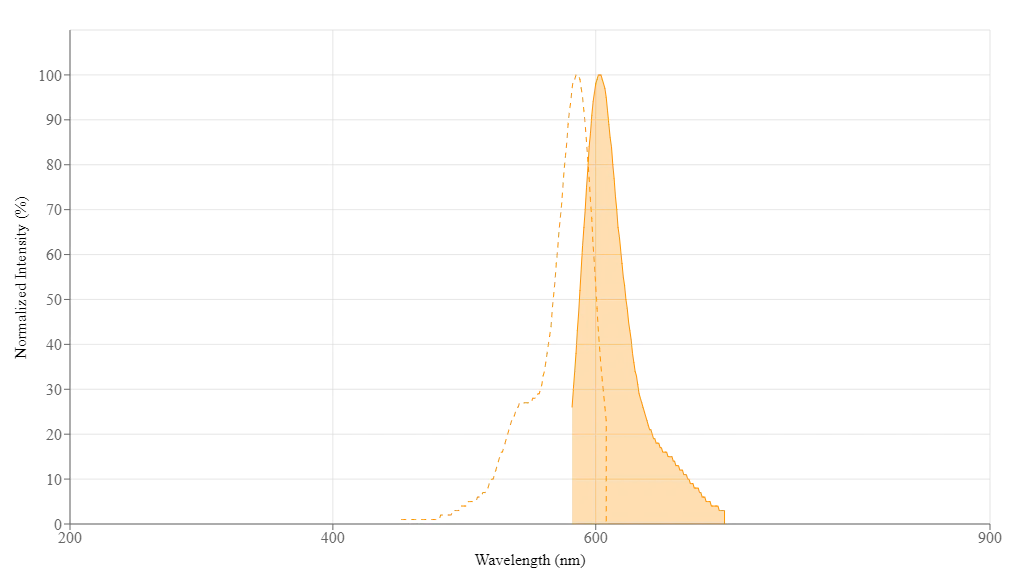

Spectrum
光譜
Spectral properties?光譜特性
Correction Factor (260?nm) | 0.23 |
Correction Factor (280?nm) | 0.36 |
Correction Factor (565?nm) | 0.4472 |
Extinction coefficient (cm?-1?M?-1) | 1160001 |
Excitation (nm) | 586 |
Emission (nm) | 603 |
Quantum yield | 0.931,?0.352 |
Images
Figure?1.?HeLa cells were incubated with mouse anti-tubulin and biotin goat anti-mouse IgG followed by Texas Red?-streptavidin conjugate (Red). Cell nuclei were stained with Hoechst 33342 (Blue, Cat#17530).
圖1.?HeLa 細胞與小鼠抗微管蛋白和生物素山羊抗小鼠 IgG 孵育,然后是 Texas Red?-鏈霉親和素偶聯物(紅色)。細胞核用 Hoechst 33342(藍色,Cat#17530)染色。
Citations
View all?1 citations:?Citation Explorer
Overexpression of MACC1 and the association with hepatocyte growth factor/c-Met in epithelial ovarian cancer
Authors:?Li, Hongyu and Zhang, Hui and Zhao, Shujun and Shi, Yun and Yao, Junge and Zhang, Yanyan and Guo, Huanhuan and Liu, Xingsuo
Journal:?Oncology letters?(2015):?1989–1996
Authors:?Li, Hongyu and Zhang, Hui and Zhao, Shujun and Shi, Yun and Yao, Junge and Zhang, Yanyan and Guo, Huanhuan and Liu, Xingsuo
Journal:?Oncology letters?(2015):?1989–1996
