SWISSCI品牌蛋白結晶板

SWISSCI簡介

超過25年的制造經驗，是結晶板，冷凍電鏡低溫載網盒，超濾管、透析管的專業制造商。

Swissci 懸滴結晶板

SWISSCI懸滴結晶板:
Swissci懸滴結晶塞板是一種新型的96孔蛋白質結晶系統，首次可以識別和移除單個孔，而不會干擾板內正在生長的晶體。非常適合納升結晶篩選和微升優化。專利設計，凸起的寬孔便于操作，Allen鑰匙系統可實現平穩拆卸，系統中新穎的封閉塞可直接用于隨后的顯微鏡檢查和X衍射。孔呈圓錐形，有透鏡效果，便于觀察;密封性好:容.積大(儲液槽50-200ul，液滴50 nl-5ul) ;符合ANSI/SLAS 1-2004標準。

MRC懸滴板圓形封板膜(MRC Hanging Drop Plate Round Seal) :
SWISSCI懸滴結晶板密封膜由無塵保護涂層和特種聚合物基料組成。可與無塵保護涂層和特種聚合物基料-起使用。
適合標準的2drop或3dropMRC板。該產品具有一層100微米或40微米的UVP特種聚合物薄層，旨在形成緊湊的液滴并具有X射線拍攝能力，而沒有任何明顯的衍射。密封蓋直接位于微孔板結晶試劑孔上方，并用耐長期封閉的粘合劑封閉，該粘合劑經驗證不會進入樣品，也不會導致密封損壞。在10萬級潔凈室環境生產，保證無灰塵和劃痕。光學質量達到最高水平。UVP封板膜可以在紫外線范圍內使用，用戶可以在紫外線光源顯微鏡下從蛋白質晶體中識別鹽晶。

Swssci 坐滴結晶板

SWISSCI 2 Lens/3 Lens坐滴結晶板
孔徑加寬，便于操作;圓錐形孔，微編號在顯微鏡下可見，便于觀察:高級聚合物具有紫外透射性，可用于區分鹽
晶體和蛋白質晶體;密封性好，空間間隔寬，提供足夠的空間使膠帶很好的密封。結構堅固，不會發生中央彎曲。
長期儲存樣品也不會蒸發;容量范圍廣，樣品處理量大(儲液槽50-100ul，液滴50 nl-5ul)，可用機器人進行高通，
量結晶:設計符合ANSI/SLAS 1-2004標準，通用性強，易于自動化操作。Midi 高度為11.7mm; Low Profile高度為7.75mm。

MRC Maxi優化結晶板
適用于大分子結晶的48孔結晶板，符合ANSI/SLAS 1-2004標準，兼容機器人和多通道移液器手動操作，可完全替代LINBRO板。液滴的最大體積10ul，孔間距離9mm,推薦樣本量:至多10ul點樣，200ul 結晶試劑。

UVXPO封板膜(UVXPO Sealing Sheets )
SWISSCI UVXPO密封膜是50 μm薄膜并帶有50 um惰性有機硅粘合劑。光學透明， 幾乎沒有自發熒光，可與UV兼
容，適合蛋白質結晶和qPCR應用。推薦使用溫度為-70°C至+105°C,無DNase-、RNase-和核酸，硅酮膠形成最牢固
的密封，可防止蒸發。

2 Lens Crystallisation Plates:

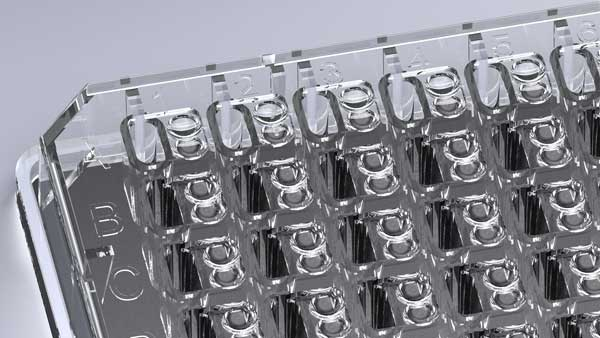

MRC 2 Lens Crystallisation Microplate

The? SWISSCI? MRC? Crystallisation? Plate? is?? a breakthrough for protein crystallisation presented in a 96-well plate format.

The plate was developed at the MRC Laboratory of Molecular Biology? (Cambridge,? UK)?? in?? collaboration?? with?? Dr.?? Jan L?we. It is the result of many years of experience in successful robotic high-throughput crystallisation and combines many of the necessary features not earlier available to the crystallographer.

The SWISSCI MRC crystallisation? Plate? offers ?unique properties that make it ideal for both nanolitre crystallisation screening and mircolitre optimisation alike. Made from optically superior polymer and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

The Advantages of the MRC Crystallisation Plate

Easy crystal retrieval
Raised wide wells make the crystal mounting especially easy.

Easy viewing
The wells are a wide conical shape and have a lens effect for perfect illumination.

The micro-numbering ensures you will never get lost again (visible by microscope).

The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing

Wide partition walls between the wells give plenty of area for good sealing with tape.
No central bending occurs in this very robust structure.
Excellent long term storage – no sample evaporation.

Wide range of volumes
Typical volumes are 50-100 μl of reservior and 50 nl-5 μl drop size. The 192 optical wells offer twice the number of experimental constructions.

ANSI/SLAS 1-2004 Standard
The plates are designed to the 96-well ANSI/SLAS 1-2004 standards for all common holders andexternal numbering (A-H, 1-12) with corner location make the plate easy to use in a robotic sampler.
The MRC plate is suitable for centrifugation.

The unique 2 drop protein crystallisation plate offers a new way of sitting-drop crystallography.
The 192 wells are optically perfect designed to observe crystals under a microscope.
The wells are doubled, providing an unique security of growing crystals.

MRC plate features

• Easy to fill 96-well structure – typically 85μl per buffer well.

• Standard ANSI/SLAS 1-2004 form for automation.

• Optically perfect wells with lens effect for a better view with ?microscope.

• Microscopic identifier within wells, simplifying the orientation under the microscope.

• Maximum volume of the buffer reservoir is 100μl, typically 100 nanolitres is used for the protein well filling.

• Grown crystals are easy to identify and to remove from well due to a low-binding ?polymer.

• Plate with 2 wells for each sample, better growing security with duplicates or the ability to use well two as a mixing station.

• Wells fill without micro-droplets jumping out due to static ?effects.

• Wells can be individually sealed with a perfectly flat upper surface – there is a large land area designed to ensure integrity of each well section.

Order details:

• 2 Well Plate in UVP?/ Box of 100?/ Code MRC96T-UVP

• 2 Well Plate in Polystyrene?/ Box of 100?/ Code MRC96T-PS

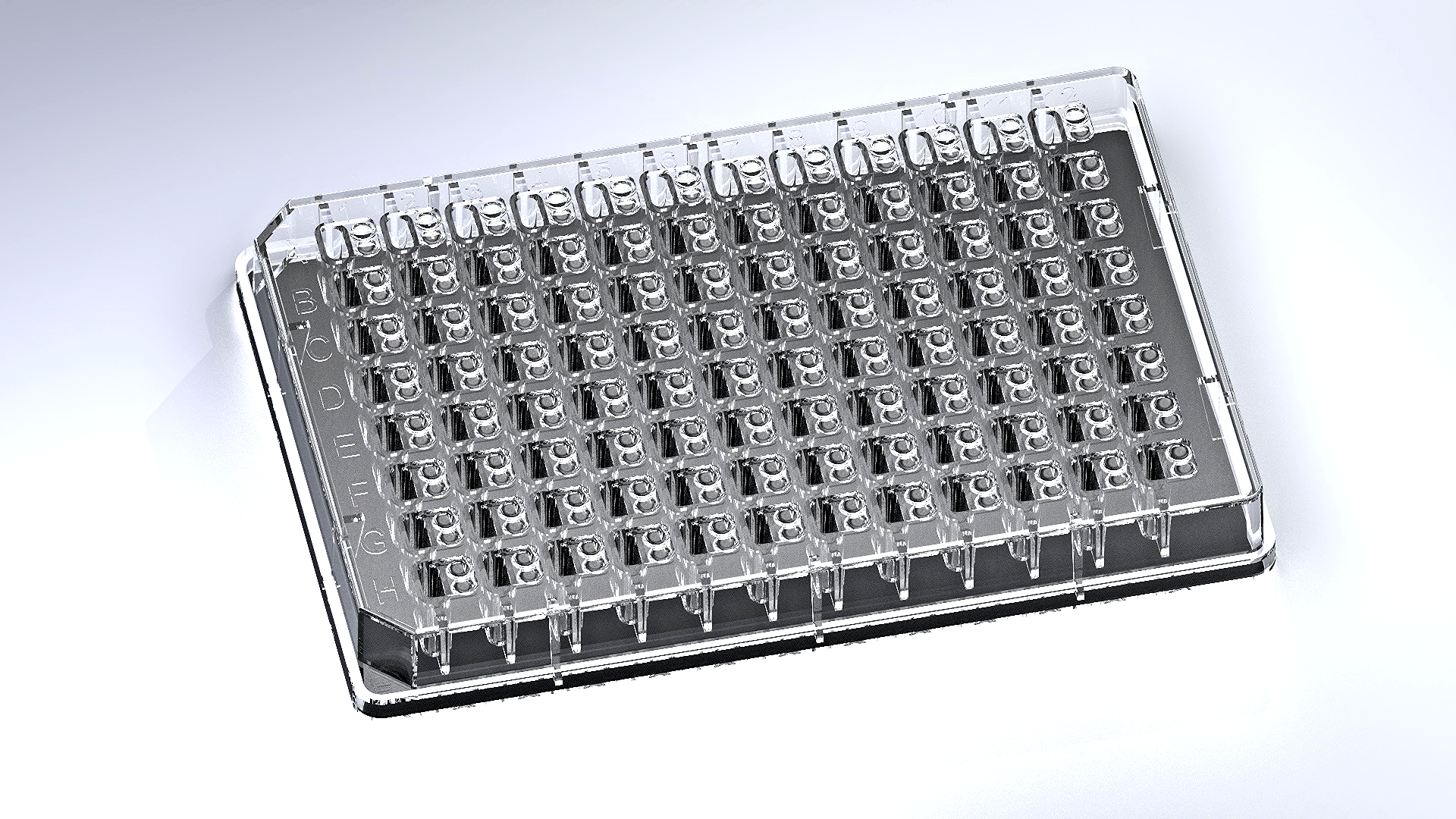

MRC 2 Lens Crystallisation Microplate

The? SWISSCI? MRC? Crystallisation? Plate? is?? a breakthrough for protein crystallisation presented in a 96-well plate format.

The plate was developed at the MRC Laboratory of Molecular Biology? (Cambridge,? UK)?? in?? collaboration?? with?? Dr.?? Jan L?we. It is the result of many years of experience in successful robotic high-throughput crystallisation and combines many of the necessary features not earlier available to the crystallographer.

The SWISSCI MRC crystallisation? Plate? offers ?unique properties that make it ideal for both nanolitre crystallisation screening and mircolitre optimisation alike. Made from optically superior polymer and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

The Advantages of the MRC Crystallisation Plate

Easy crystal retrieval
Raised wide wells make the crystal mounting especially easy.

Easy viewing
The wells are a wide conical shape and have a lens effect for perfect illumination.The micro-numbering ensures you will never get lost again (visible by microscope).The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing

Wide partition walls between the wells give plenty of area for good sealing with tape.
No central bending occurs in this very robust structure.
Excellent long term storage – no sample evaporation.Wide range of volumes
Typical volumes are 50-100 μl of reservior and 50 nl-5 μl drop size. The 192 optical wells offer twice the number of experimental constructions.

ANSI/SLAS 1-2004 Standard
The plates are designed to the 96-well ANSI/SLAS 1-2004 standards for all common holders andexternal numbering (A-H, 1-12) with corner location make the plate easy to use in a robotic sampler.
The MRC plate is suitable for centrifugation.

The unique 2 drop protein crystallisation plate offers a new way of sitting-drop crystallography.
The 192 wells are optically perfect designed to observe crystals under a microscope.
The wells are doubled, providing an unique security of growing crystals.

MRC plate features

• Easy to fill 96-well structure – typically 85μl per buffer well.

• Standard ANSI/SLAS 1-2004 form for automation.

• Optically perfect wells with lens effect for a better view with ?microscope.

• Microscopic identifier within wells, simplifying the orientation under the microscope.

• Maximum volume of the buffer reservoir is 100μl, typically 100 nanolitres is used for the protein well filling.

• Grown crystals are easy to identify and to remove from well due to a low-binding ?polymer.

• Plate with 2 wells for each sample, better growing security with duplicates or the ability to use well two as a mixing station.

• Wells fill without micro-droplets jumping out due to static ?effects.

• Wells can be individually sealed with a perfectly flat upper surface – there is a large land area designed to ensure integrity of each well section.

Order details:

• 2 Well Plate in UVP?/ Box of 100?/ Code MRC96T-UVP

• 2 Well Plate in Polystyrene?/ Box of 100?/ Code MRC96T-PS

MRC 2 Lens Crystallisation UVXPO Microplate

Order details:

• 2 Well Plate in UVXPO / Box of 100 / Code UVXPO-2LENS

Order details:

• Hanging Drop Crystallisation Plate?/ box of 10 plates?/ Code HDP96TUVP

Order details:

• HANGING DROP PLATE 100 MICRON SEAL ROUND WELL UVP (pack of 50) Code: HDP-UVP-96T02

• HANGING DROP PLATE 40 MICRON SEAL ROUND WELL UVP (pack of 50) Code:? HDP-UVP-96T03?

Order details:

• MRC Hanging Drop Plate Seal Non-UVP /?Pack of 50 /?Code HDP-PE-96T03

SWISSCI MRC Maxi 48孔板 MRC Maxi 48 Well Plates

SWISSCI蛋白結晶試劑代理–上海金畔生物
歡迎訪問SWISSCI官網或者咨詢我們獲取更多產品信息。

• ANSI/SLAS 1-2004標準
• 48口井
• 3種聚合物

關鍵特征

• 光學完井
• 微號
• 專為大容量?jī)?yōu)化實驗而設計

Facts

• ANSI/SLAS 1-2004 Standard
• 48 wells
• Available in 3 polymers

Key Features

• Optically perfect wells
• Micro-numbering
• Designed for high volume optimization experiments

• Description

SWISSCI 3透鏡結晶板 3 Lens Crystallisation Plate
SWISSCI蛋白結晶試劑代理–上海金畔生物
歡迎訪問SWISSCI官網或者咨詢我們獲取更多產品信息。

Facts

• ANSI/SLAS 1-2004 Standard
• 288 wells
• Available in 3 polymers

Key Features

• Optically perfect wells
• Micro-numbering
• Optimised for crystal mounting

關于

• Description

SWISSCI MRC 2透鏡結晶板 MRC 2 Lens Crystallisation Plate

SWISSCI蛋白結晶試劑代理–上海金畔生物
歡迎訪問SWISSCI官網或者咨詢我們獲取更多產品信息。

MRC 2 Lens Crystallisation Plate
Facts

ANSI/SLAS 1-2004 Standard
192 wells
Available in 3 polymers
Key Features

Optically perfect wells
Micro-numbering
Optimised for crystal viewing

• Description

SWISSCI 坐滴板 Sitting Drop

The Sitting Drop range in 2 lens, 3 lens, and 48 well formats are available in 3 polymers and offer easy crystal retrieval. Raised, wide wells allow for effective crystal mounting. The wells are conically-shaped creating a lens effect for perfect illumination.

2 Lens Crystallisation Plates

The MRC Crystallisation Plate comes in a 96-well plate format, allowing easy crystal viewing and retrieval and available in UV, PS or UVXPO.

3 Lens Crystallisation Plates

The 3 Lens Crystallisation Plate is ideal for protein crystallisation, presented in a 96-well plate format and available in 3 polymers.

MRC Maxi 48 Well Crystallisation Plates

The MRC Maxi optimisation plate is a new design for macromolecular crystallisation presented in a 48-well format, available in UVXPO, UVP and PS.

UVXPO Sealing Sheets

SWISSCI’s UVXPO Sealing Sheets are a 50 μm film with 50 μm inert encapsulated silicone adhesive.

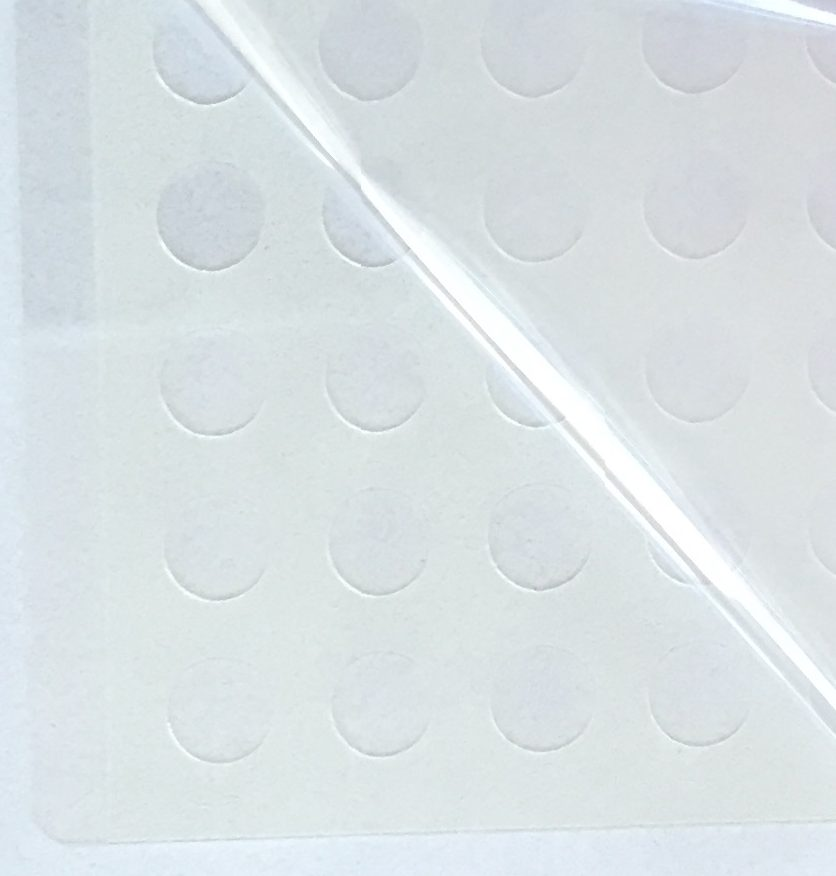

SWISSCI 懸滴圓形密封結晶板Hanging Drop Round Seals

Facts

• ANSI/SLAS 1-2004 Standard
• 96 wells
• UV / Non-UVP Transmissible Polymer

Key Features

• Accommodates 3 separate drops of protein
• Fits standard 2 or 3-drop MRC plates
• Choice of 100 or 40-micron UVP specialty polymer layer

  懸滴圓形密封

  事實

  • ANSI/SLAS 1-2004標準
  • 96口井
  • UV/非UVP可傳輸聚合物

  關鍵特征

  • 可容納3滴蛋白質
  • 適合標準2或3液滴mrc板
  • 100或40微米UVP特種聚合物層的選擇
